Specification Information | |
Vehicle Size | 3600*1400*1460mm |
Carriage Size | 2000*1300*350mm |
Wheelbase | 2430mm |
Track Width | 1140mm |
Battery | 12V 9A |
Engine | 200CC Water Cooling |
Ignition Type | C.D.I |
Start System | Electric / Kick |
Chasis | 40*80mm Frame ,40*80mm Chasis, With Big Footrest |
Number of Cab Passengers | 1-2 |
Rated Cargo Weight | 1000Kg |
Ground Clearance(No-Load) | 160mm |
Rear Axle Assembly | Half Floating Small Afterburner Rear Axle With 180mm Drum Brake ( Max Speed :60km/h ) |
Front Damping System | Ф43 Shock Absorption of Leaf Spring |
Rear Damping System | 4+3 Steel Plate |
Brake System | Front And Rear Drum Brake |
Hub | Steel |
Front And Rear Tire Size | 4.50-12 |
Front Bumper | Ball Bumper |
Fuel | Oil Tank |
Headlight | Halogen |

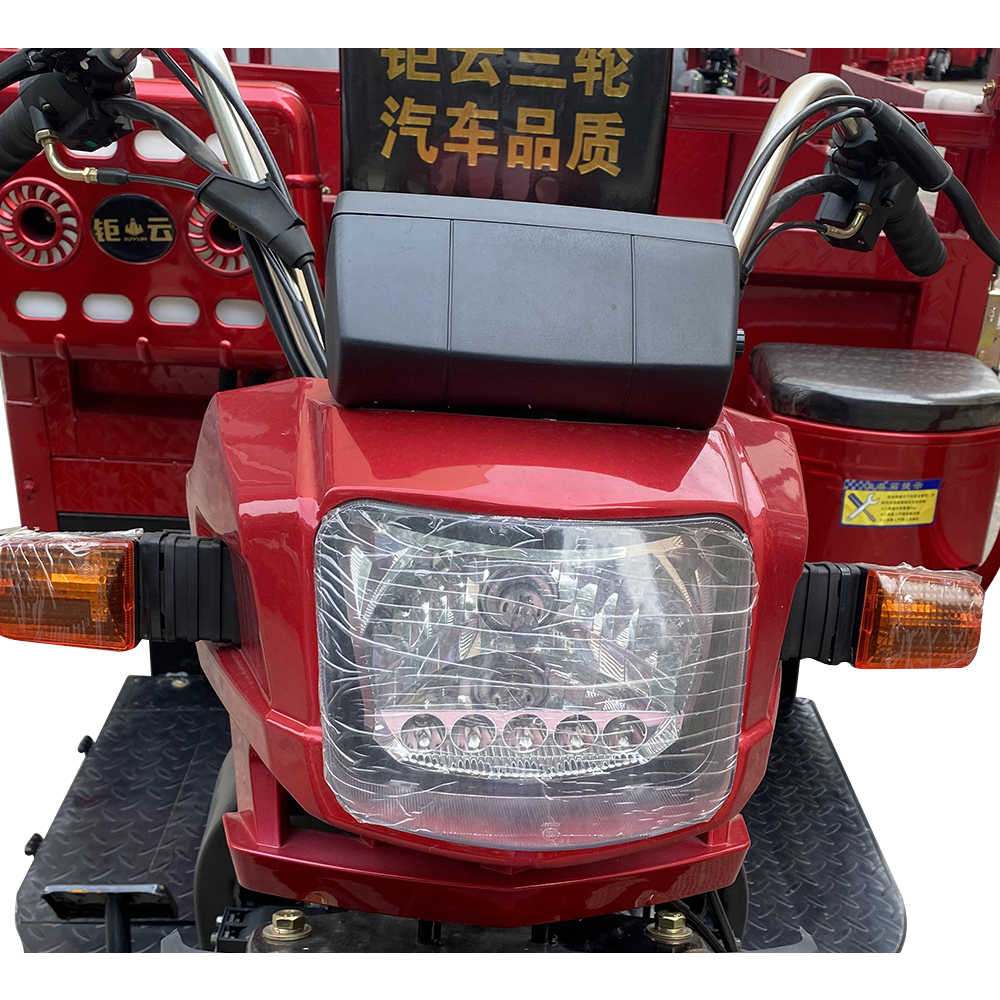

Meter | Mechanical Meter |
Rearview Mirror | Rotatable |
Seat / Backrest | Leather Seat |
Steering System | Handlebar |
Horn | Front And Rear Horn |
Vehicle Weight | 420Kg |
Climbing Angle | 25° |
Parking Brake System | Hand Brake |
Drive Mode | Rear Drive |
Color | Red/Blue/Green/White/Black/Orange |
Toolbox | Upholstered Armrest Toolbox |
Spare Parts | Jack, Cross Socket Wrench, Screwdriver, Wrench, Spark Plug Removal Tool, Pliers |
